High Efficiency Electrical Vibro Replacement Device Ground Improvement BJV130E - 426

High efficiency electrical top feed vibroflot used for ground improvement BJV130E - 426

Vibroflot profile(BVEM)

BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
As the active pusher of vibroflotation and the professional supplier of vibroflot, BVEM has developed vibroflotation application and supplied vibroflot equipment to 33 countries all over the world.With the enterprise mission of "OUTPERFORM to SERVE VIBRIFLOTATION", BVEM product was widespread in more and more countries with excellent reputation which came from the high recognition of high performance product and the top level whole process service.

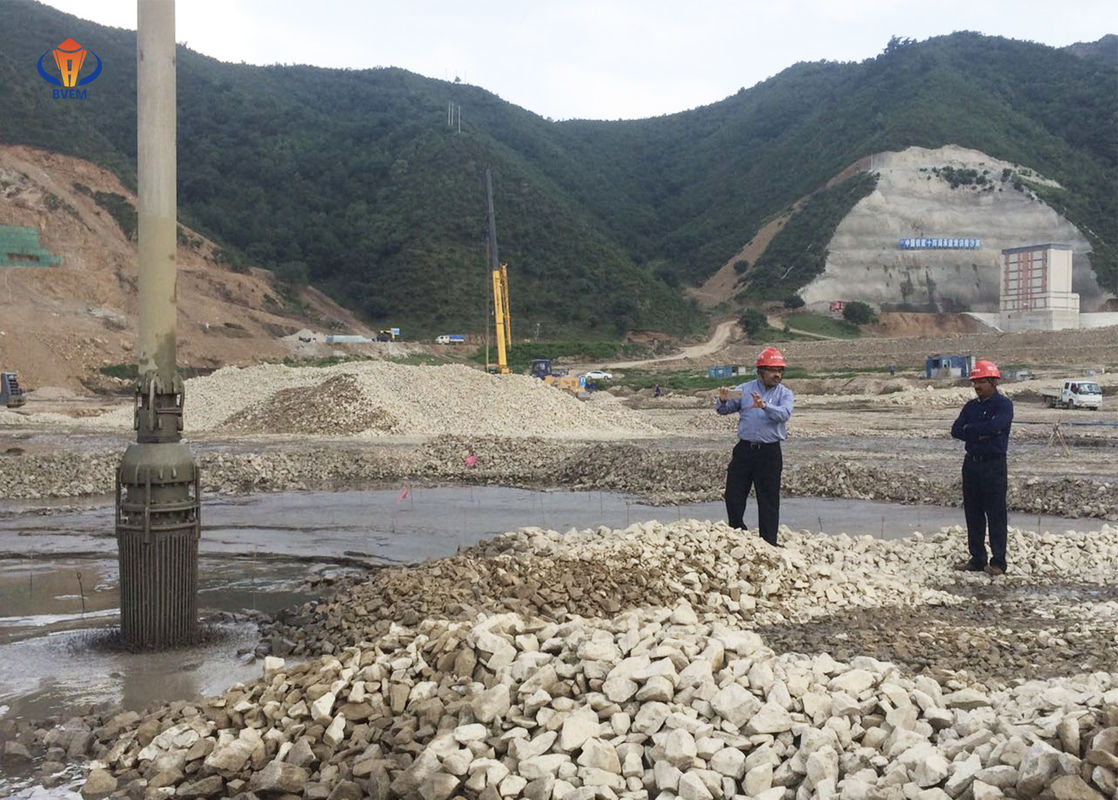

Vibro replacement
Jet water and vibrate by vibroflot to form holes. Fill in pile holes by section with solid filling materials such as gravel (cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up to the ground according to the requirements of compaction current and the sectional compaction length.

Vibroflot characteristics
The vibroflot barrel and the motor housing are made of high strength forged steel
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect
Unique circulating water cooled motor structure, good heat dissipation with high efficiency
Both vibroflot and motor are imported with FAG original bearing
Double-deck vibrating head design with good resistance, easy to replace
Unique bearing oil lubrication, further improve bearing life
