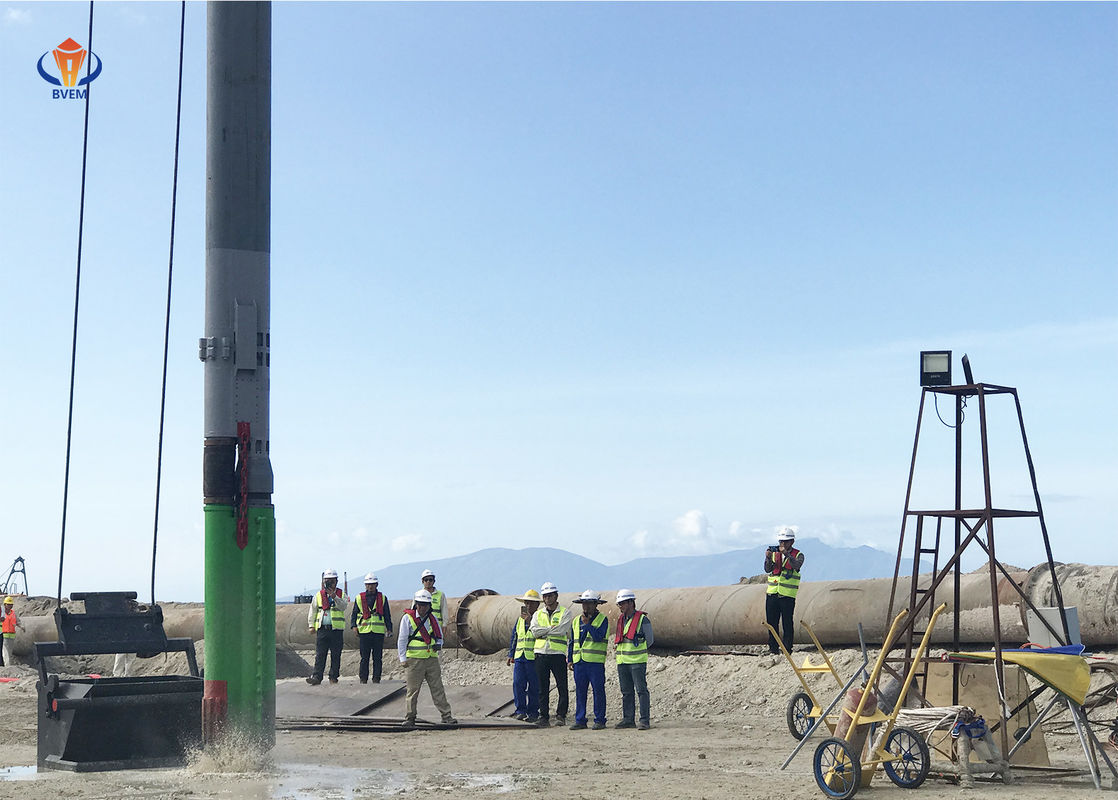

High Power Vibroflotation Compaction Stone Columns / Vibro Piling Equipment

Big power vibroflotation compaction vibroflot machine used for sand soil improvement 150KW

Vibro techniques
A foundation treatment method by joint action of horizontal vibration and high pressure water to compact the loose sand layer or formed in soft soil of stone column to compose the composite foundation with original soil together.

Vibroflotation benefits
The deep vibro techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions and foundation requirements. Its execution is comparatively fast even if large volumnes of soil are to be improved and subsequent structural works can follow very quickly.The soil improvement enables the contractor to utilise standard shallow footings which,in turn,leads to additional savings.
Another advantage is the environmental friendliness of vibro techniques,as natural and in situ materials are used. In addition, only a comparatively small quantity of soil is removed during the process.

The profile of China vibroflot supplier

BVEM· A pioneer to optimize construction of vibroflotation method

1.In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting
2.For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method
3.In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa
4.In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China
5.In 2014, the first YZ125KW hydraulic vibroflot was developed.

With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.

Whole process service

Geological analysis
BVEM’s geological experts support clients on the professional analysis of soil situation and give the suggestion of feasible solution.

Vibroflotation design
By analysis and calculation result, help clients formulate vibroflotation design scheme, including the pile layout, depth of pile, diameter of pile and volume of feeding stone etc., and quality control method as well as testing method.

Equipment selection
In terms of situation of engineering, with consideration of technology, cost and construction period requirement, recommend the vibroflots model with suitable capacity and high cost performance.

Construction Scheme
According to the situation of engineering, formulate the feasible construction organization scheme, including the number of construction unit, stages and sequence of construction.

Installation&Commissioning
Service engineer reach job-site to guide the installation and commissioning of equipment, make sure equipment normal operation.

Construction Guiding
Engineers with full of construction experience demonstrate the operation of vibroflotation and train the operators of clients, help clients understand construction process and the quality control method.
